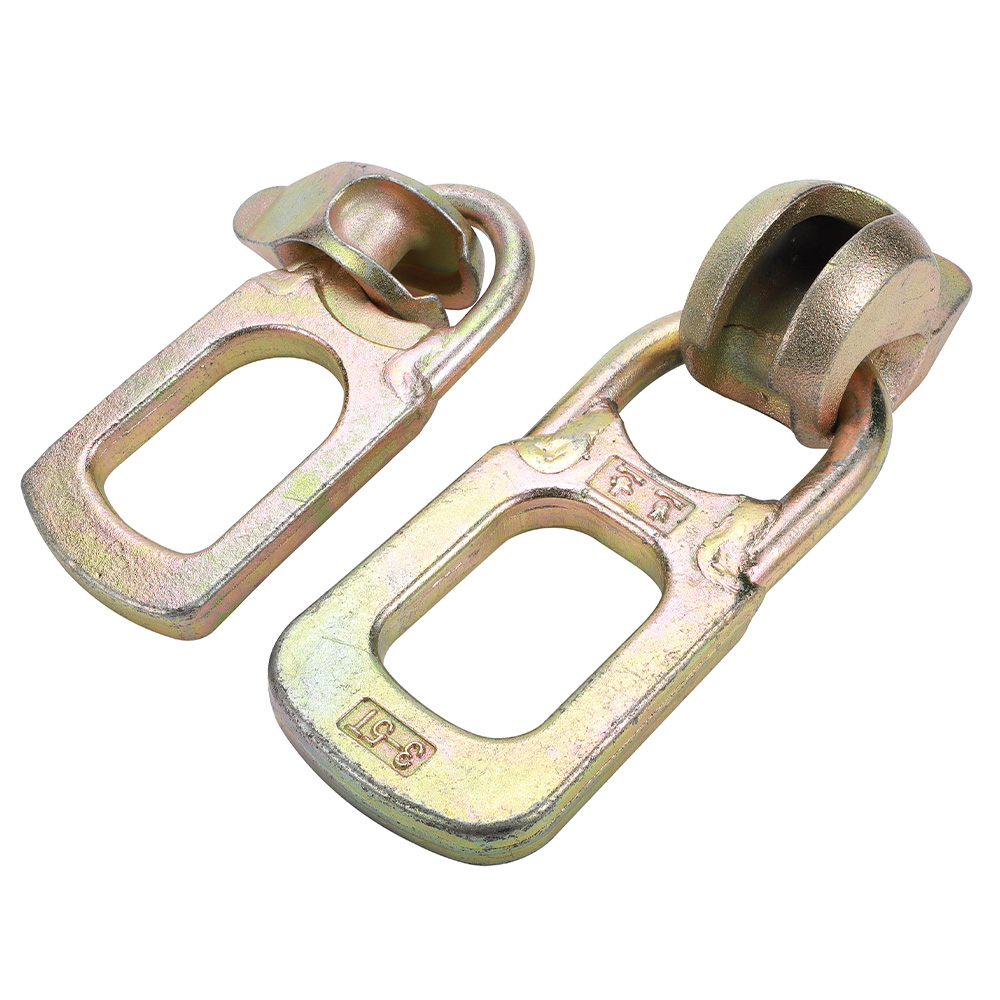

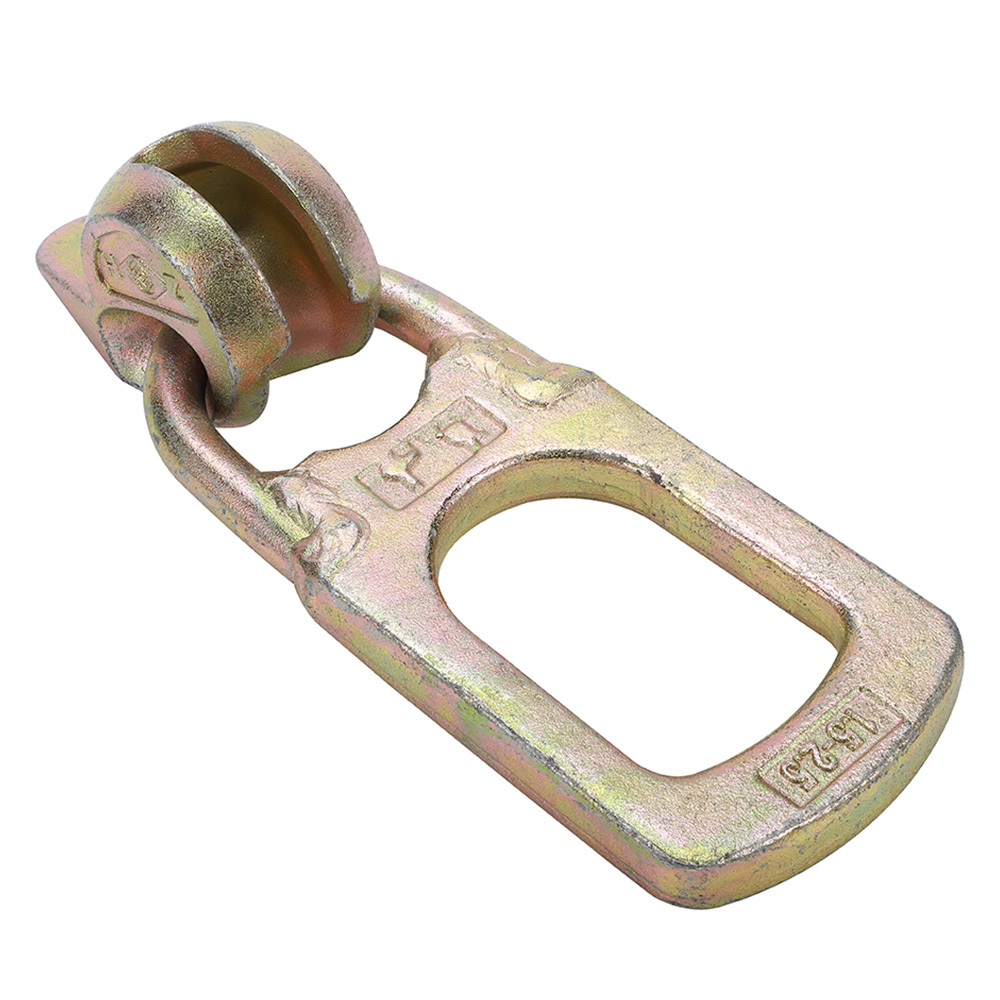

Alloy Steel Lifting Ring Clutch

Alloy Steel Lifting Ring Clutch assembly consists of a bail, clutch and curved bolt handle. To install, rotate the curved bolt to the opened position and insert the clutch into the recess. To lock onto the anchor, rotate the curved bolt handle until the handle contacts the panel surface.

The Lifting Clutch for lifting pin anchor is used for lifting a wide range of precast concrete products for building and civil engineering including panels, pipes, pits, manholes, box culverts, road barriers, bridge beams, planks, sound walls, culverts etc.

The Lifting Clutch for lifting pin anchor has been available in the market for many years and is therefore the tried and tested solution for lifting precast concrete elements.

1.Introduction:

The Lifting Ring Clutch is positioned in the recess surrounding the cast-in anchor and the locking latch is closed by hand, enabling the locking ring to engage with the anchor head. The lifting ring clutch is thus connected with the anchor in a matter of seconds. The lifting ring clutch can now be pulled in all directions to allow for lifting, rotating and pitching of the unit. There is no preferred direction. To release, open the latch and the ring clutch can be removed.

2.Products Detailed

• The Alloy Steel Lifting Ring Clutch can be made of alloy steel

• Safety factor is 5:1

• Surface Treatment:  galvanized, hot dip galvanized

• Accepted customizing
