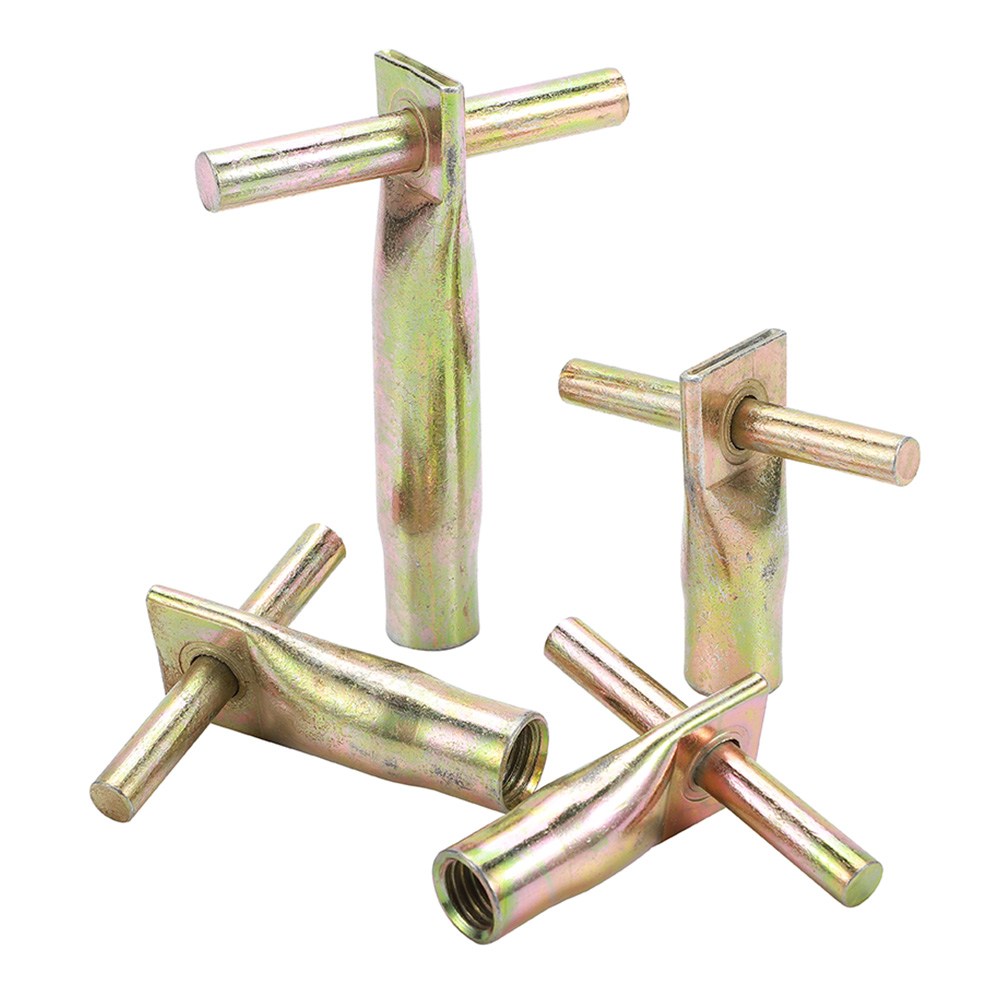

Galvanized Lifting Socket

Galvanized Lifting Socket With Cross Hole Barareheavy duty fixings machined from bar material.

They are normally finished with a factory fitted cross pin but can also be delivered with a hole for site fixed reinforcement.

Lifting socket is oneinner thread inserts designed for securing objects to concrete elements. It’s anchorage to concrete is with the help of anchor pin which is attached to the body of insert.

1. Description

Galvanized Lifting Socket With Cross Hole Barareheavy duty fixings machined from bar material. <br/>

They are normally finished with a factory fitted cross pin but can also be delivered with a hole for site fixed reinforcement. <br/>

Lifting socket is oneinner thread inserts designed for securing objects to concrete elements. It’s anchorage to concrete is with the help of anchor pin which is attached to the body of insert.

provide simple lifting and transporting for most kinds of precast concrete units, particularly when casting into thin concrete panels, used as fixings in architectural field.Flat End Lifting Inserts are available in both high grade zinc plated carbon steel and 304/316 grade stainless steel.

3. Feature & Application

• Zinc plated or stainless steel A2, (A4 on request)

• M thread

• The socket is anchored into the concrete via the cross pin.

• Stainless steel socket provides the highest corrosion resistance

• Sockets used only for axial loading require no further reinforcement

Heavy Duty Lifting Socket with Cross Bar for high tensile and shear loads. Widely used in the application of precast concrete construction, such as lifting beams, wall and floor slabs etc.A Reinforcement bar is to be inserted through the cross hole to transfer the load into the concrete.

4. Product Details

High Strength Solid bar, galvanized. Stainless steel available on request.

All installation instructions of lifting socket with cross bar are based on concrete safety factors of two times the axial load rating at a concrete strength of 15N/mm2 at the time of first lift. All products are rigorously tested, inspected and are supplied with safe working instructions where applicable. Flat End and Cylindrical Lifting Sockets can be used in conjunction with Plastic Nailing Plates or Magnetic Holding Plates to provide a recess that can be made good on site. Plastic Stopper Caps are also available to protect threads from weathering and ingress of dirt or foreign matter that can prevent the threads from engaging completely down the length of the socket. The anchors designed are for axial and angled lifts of β ≤ 90º.
