lifting anchor system consists of flat steel anchors, recess formers and lifting clutches. The design of the lifting clutches and anchors permit loads in any direction. One of the main benefits of this system is the availability of erection anchors for tilting of thin elements with no edge breaking. The clutches can be released either directly by hand at the clutch head or by remote control.
Lifting head anchor for incasing together with a removable recess former, used for lifting, transportation and handeling.
The lifting head anchors are manufactured of quality steel and the anchor head is forged to fit til lifting clutch.
The anchor
The anchors are made from a special quality of flat steel. The anchor head has a hole in which the locking ring of the clutch can engage.

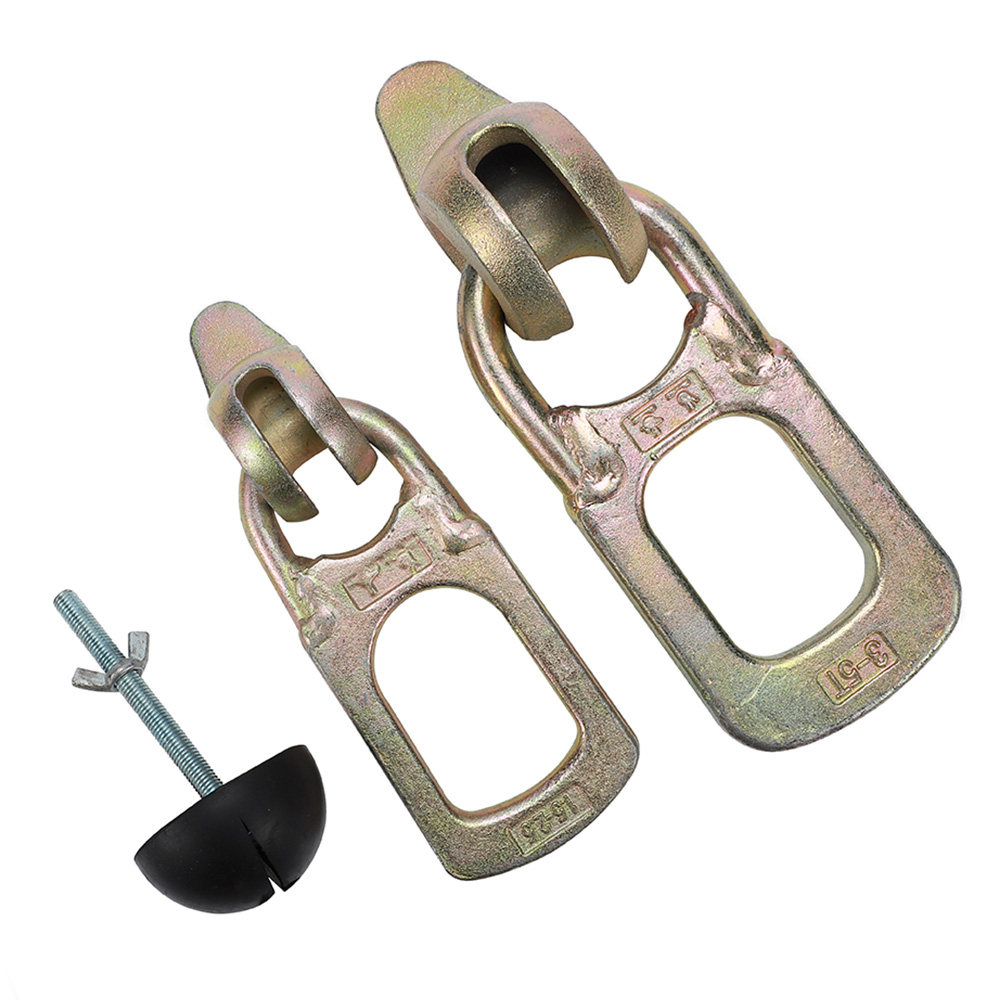

Ring clutches
The ring clutch is positioned in the recess surrounding the cast-in anchor and the locking latch is closed by hand, enabling the locking ring to engage with the anchor head. The clutch is thus connected with the anchor in a matter of seconds. The ring clutch can now be pulled in all directions to allow for lifting, rotating and pitching of the unit. There is no preferred direction.
Quality features:
15 load classes from 0.7 to 26.0
Lifting head anchor for incasing together with a removable recess former, used for lifting, transportation and handeling.
The lifting head anchors are manufactured of quality steel and the anchor head is forged to fit til lifting clutch.
