Precast Concrete Lifting System

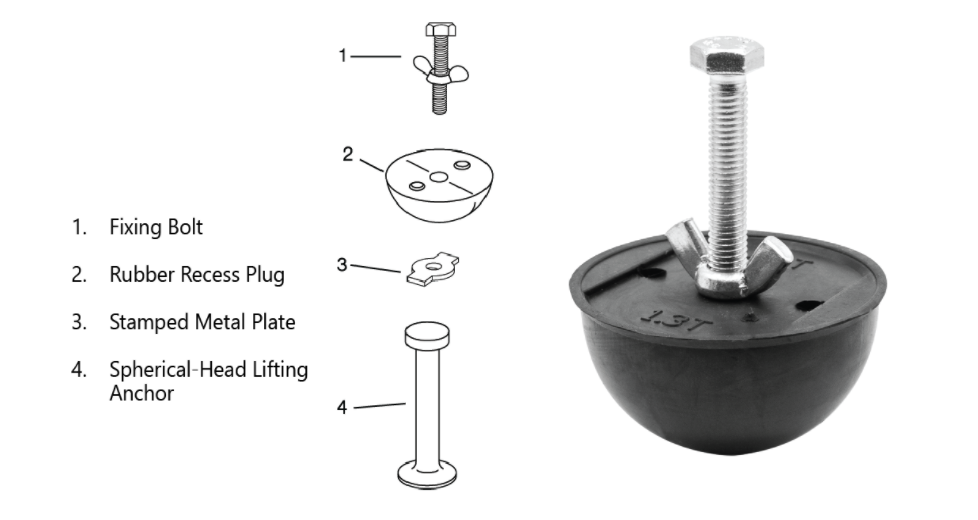

The lifting system can safely and efficiently lift and transport all types of precast concrete components, including precast concrete beams, floors, wall panels, pipes and other components. The hoisting system is equipped with flat steel lifting embedded parts, and the hoisting system is equipped with round head embedded lifting anchors, which can realize fast connection and release function in the actual hoisting process. lifting anchorshave a wide range of applications, can be used in different components, such as floor, column, wall, or beam, and the direction of the load is not restricted. The semi-spherical groove shaper can be used to form a general spherical groove on the surface of the member after concrete pouring, which can be completed easily in hoisting

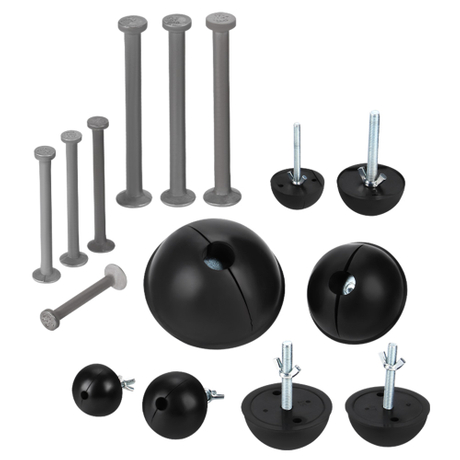

With a wide selection of lifting nails to meet the requirements of different types of lifting and transportation operations, the hoisting system can be safely embedded in the field while giving full design freedom in all load directions.

Hide the embedded hoisting part

Landscape or building component products installed above ground can be provided with lifting points in the inner visible area. Often these lifting points do not function after the installation is complete, and the project client often hides the lifting points with a variety of additional materials and man-hours after the lifting is completed. In the project that adopts the lifting scheme, with the help of the hemispherical groove shaper, it is more convenient and quick to hide the reserved lifting parts after the component is lifted than the traditional measures. The later cutting of embedded parts is avoided.
