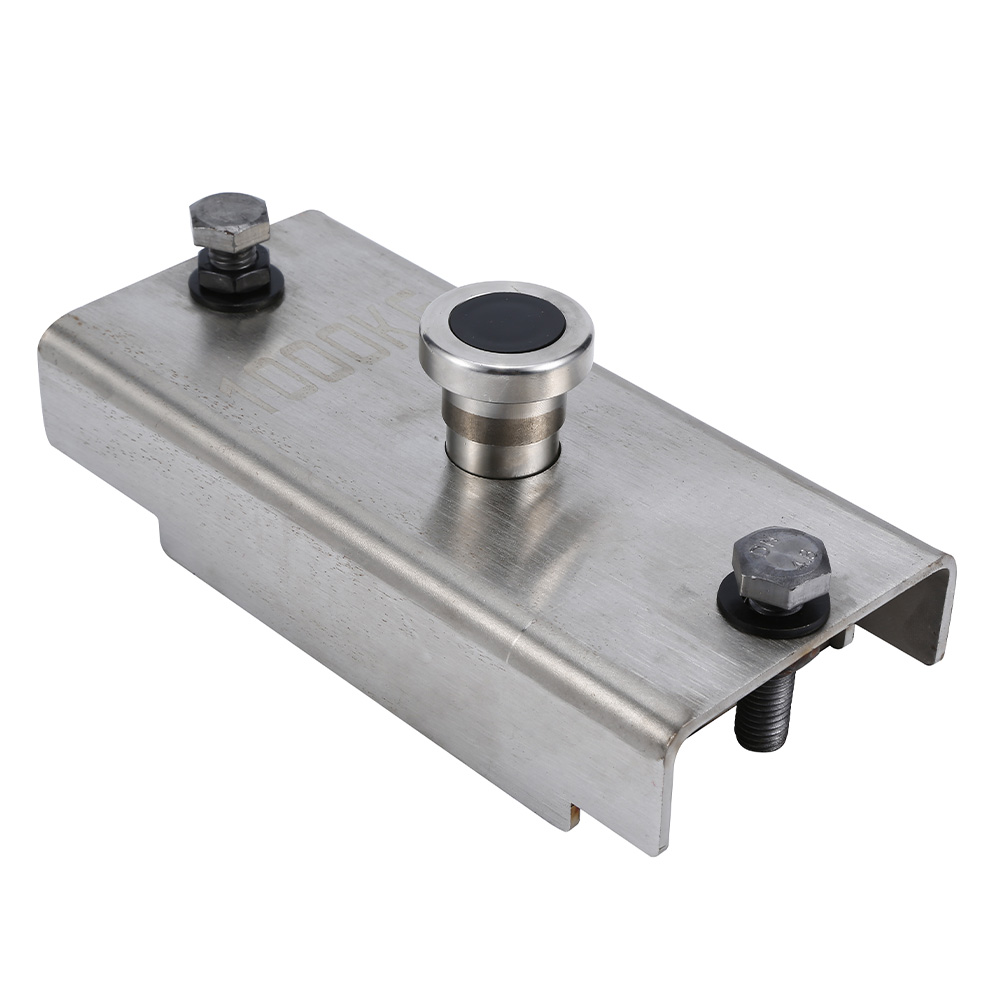

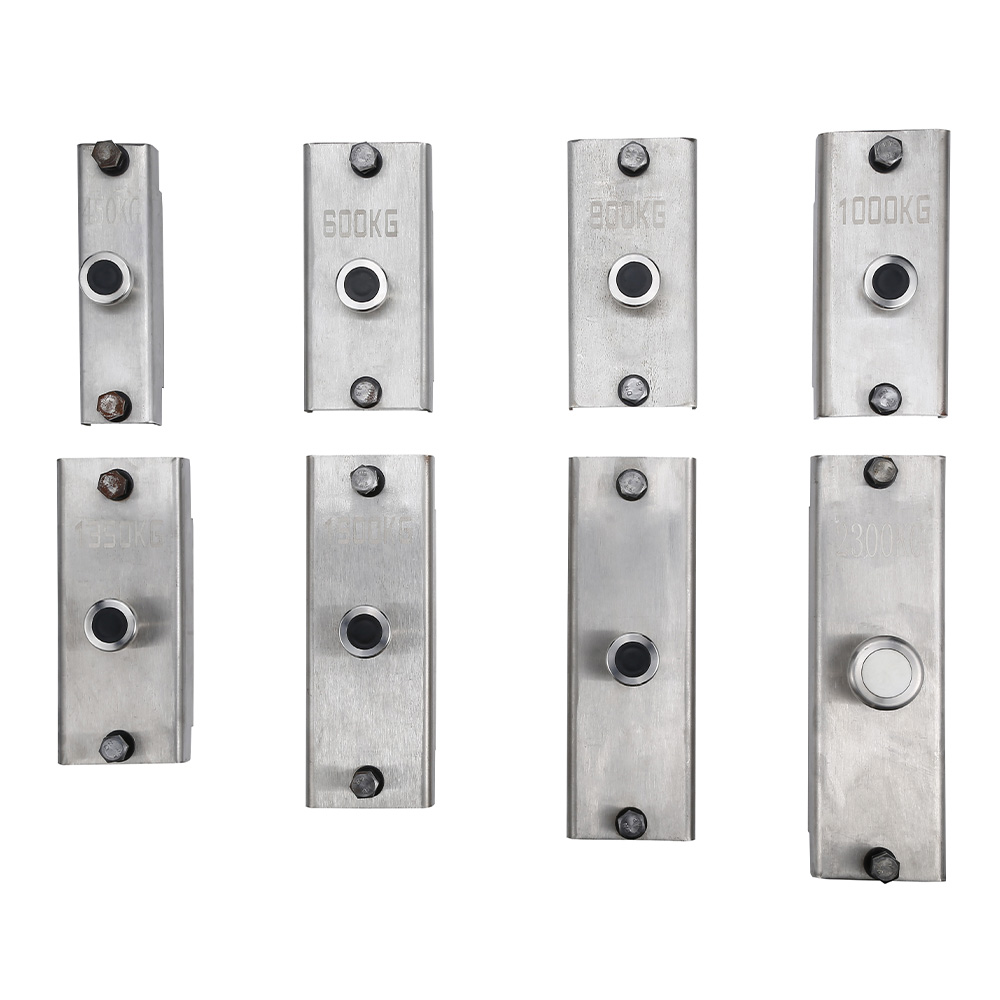

Precast Concrete Shuttering Magnets formwork

We are Manufacturer, Supplier, Exporter of shuttering magnet precast Rectangular Shape

Application

This deviceis basically designed for of cement block, slab etc. Before innovation of this device the work has been done by using wooden strips, batten joining with nails as per the design and after casting it, the whole material has been waste, so that it loss productivity and waste of time and money.

Characteristics

These device consist of powerful Nd Fe B grade magnets it help to reduce the self weight and increases holding capacity. It operated by simple turn of lever for energize & de-energize (ON-OFF), no external power is required.

Operating Instructions

Permanent Magnetic Lifter use for any ferrous material. The magnetic Field controlled by ON / OFF position of the handle / lever. In "OFF" position, the handle is reset on the stopper to provide a total magnetic circuit will be short within the lifter body. In "ON" position, the handle is rotated clockwise through 90 degree so that concentrated magnetic field is produced and transfer to the job through the poles. To release load, turn the handle anticlockwise or in reverse direction for deactive the magnetic field.

Performance of Lifter

Consider 40% lifting force while lifting round job due to it line contact. For 100% utilization of recommended capacity, required close contact between magnetic face and lifting object.
