Wire Rope Lifting Ring Clutch

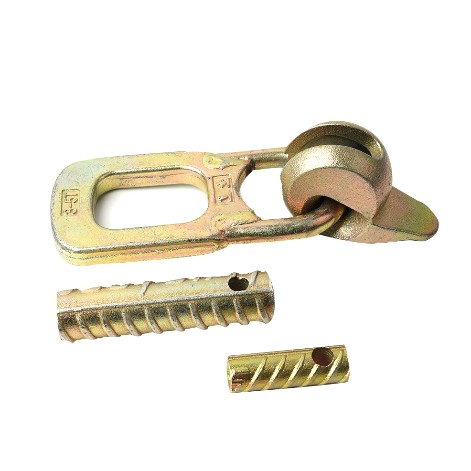

The Lifting Cable Cluth consists of a shackle and a clutch head. The shackle is freely moveable in all directions. The clutch head incorporates a locking bolt that engages in an anchor, which is cast in a recess in the concrete. The locking bolt is corrosion protected.

Description

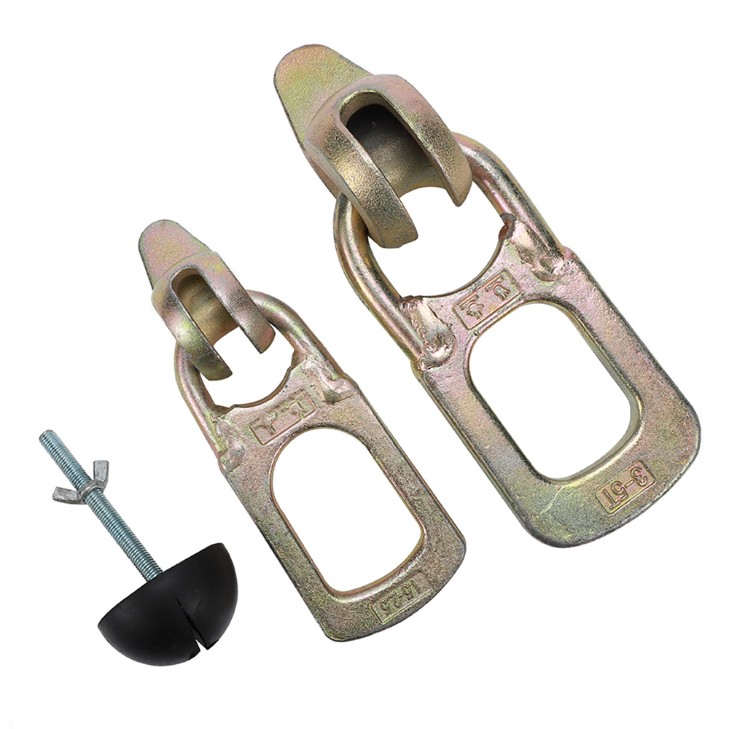

The Lifting Clutches consists of a shackle and a clutch head. The shackle is freely moveable in all directions. The clutch head incorporates a locking bolt that engages in an anchor, which is cast in a recess in the concrete. The locking bolt is corrosion protected. The allowable loads for each application are selected from the respective

table for the anchor type. All lifting link safety regulations in the country of use must always be observed, in particular those for the use of cranes and lifting equipment

Safety:

• Reinforcement is not mandatory for the anchor (except 2-Hole Anchor), but it may used.

• Ring Clutch engagement of anchors is always positive and pulls in any direction are possible.

• Overloaded units visibly deform and can be removed before failure.

Economy:

• Anchors are inexpensive.

• Simple and rapid Clutch operation; can not be matched by any other means.
